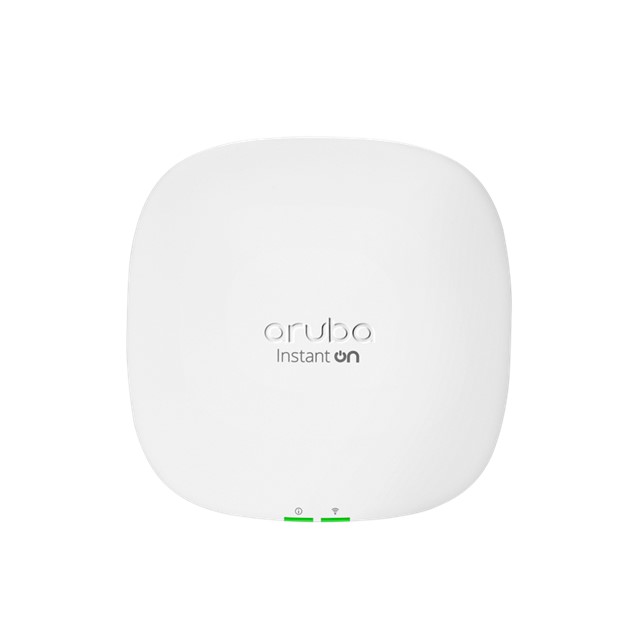

HPE Networking Instant On Access Point Dual Radio Tri Band 2×2 Wi‑Fi 6E (RW) AP32 (S1T23A)

Certifications Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3

Input voltage PoE: 802.3at (class 4) DC power (12V)

Note: Power sources are sold separately unless you purchase the bundle SKU

Wi-Fi antenna Antennas: Dual omni-directional 2×2 MIMO
Antenna Gain: 2.8 dBi in 2.4 GHz 4.5 dBi in 5 GHz and 6 GHz
Maximum transmit power:
5 GHz and 6 GHz band: +21 dBm (+18 dBm per chain, 3 dB MIMO gain)
2.4 GHz band: +21 dBm (+18 dBm per chain, 3 dB MIMO gain)

Connectivity, standard Ultra-fast 802.11ax

Ports 1x 2.5 GbE Base-T uplink port
DC power connector
LED status indicators
Reset/LED control button
Kensington security slot

Mounting Ceiling/Wall-mount clip

Power consumption Max power consumption: 12.9W (PoE) 11.0W (DC)

Radio coverage Dual-Radio, tri-band 802.11ax
2×2 6 GHz/5 GHz/2.4 GHz* MIMO

Note: * Only two active bands are selectable.

Warranty Instant On 2-year warranty includes 24X7 phone support for the first 90 days and chat support for the entire warranty period.
Community support is available for the life of the product.

Detailed product description The HPE Networking Instant On Access Points AP32 is a Wi-Fi CERTIFIED 6™ access point with 6 GHz spectrum capabilities to support Wi-Fi 6E compatible devices. With this dedicated band you’ll experience lower latency and faster transmit rates (up to 3.6 Gbps) for your Wi-Fi 6 enabled devices. Support over 100 devices with this 2×2 tri-band wireless access point and bring the cloud closer to your edge.

Differentiator In the Box:
HPE Networking Instant On Access Point
Quick Start guide
Combined ceiling and wall rail mount clip
Ethernet cable

Add PoE or DC power source
For use in those countries and regions where no specific regulatory domain is required.
